792754 PLUG OFFSET W/TIGHT IEC 3P+E, AC380-415V/440-460V RED PI2-3B

规格参数	参数值
IMPA编码	792754
产品单位	PCE

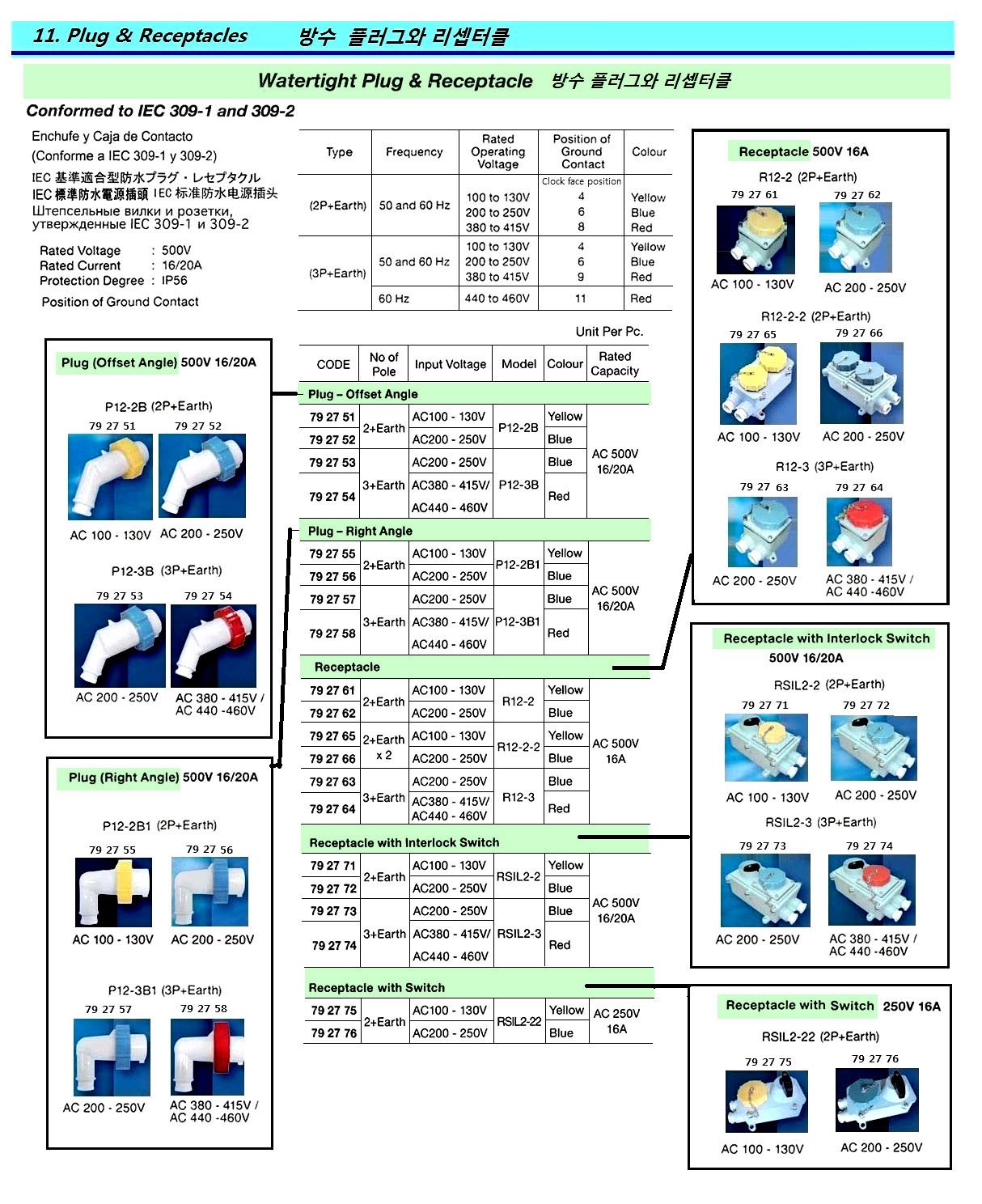

产品规格	Designed to meet IEC (International Electrotechnical Commission) standards and colour coding system. The configurations for plugs and receptacles are single-rated which assures proper mating of devices with the same voltage and amperage. So it is impossible to couple a plug and receptacle of different voltage and/or amperage ratings to avoid causing damage to the equipment or even personal injury. The receptacles with Interlock device eliminate the possibility of making or breaking the circuit under load or making a haphazard connection. Rated Voltage : 500V, Rated Current : 16/20A. Protection Degree : IP56 Plug – Offset Angle
中文汉化	792754 带有紧密 IEC 3P+E 三极插座的插头，适用于交流 380-415V/440-460V 红色 PI2-3B 设计以符合 IEC（国际电工委员会）标准和颜色编码系统。插头和插座配置为单极额定，确保与相同电压和电流的设备正确配合。因此，无法将额定电压和/或电流不同的插头和插座连接在一起，从而避免对设备造成损坏甚至人身伤害。带有联动装置的插座消除了在负载下接通或断开电路，以及随意连接的可能性。额定电压：500V，额定电流：16/20A。防护等级：IP56。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
