792774 RECEPTACLE W/T IEC W/LOCK 3P+E, AC380-415/440-460V RED RSIL2-3

规格参数	参数值
IMPA编码	792774
产品单位	PCE

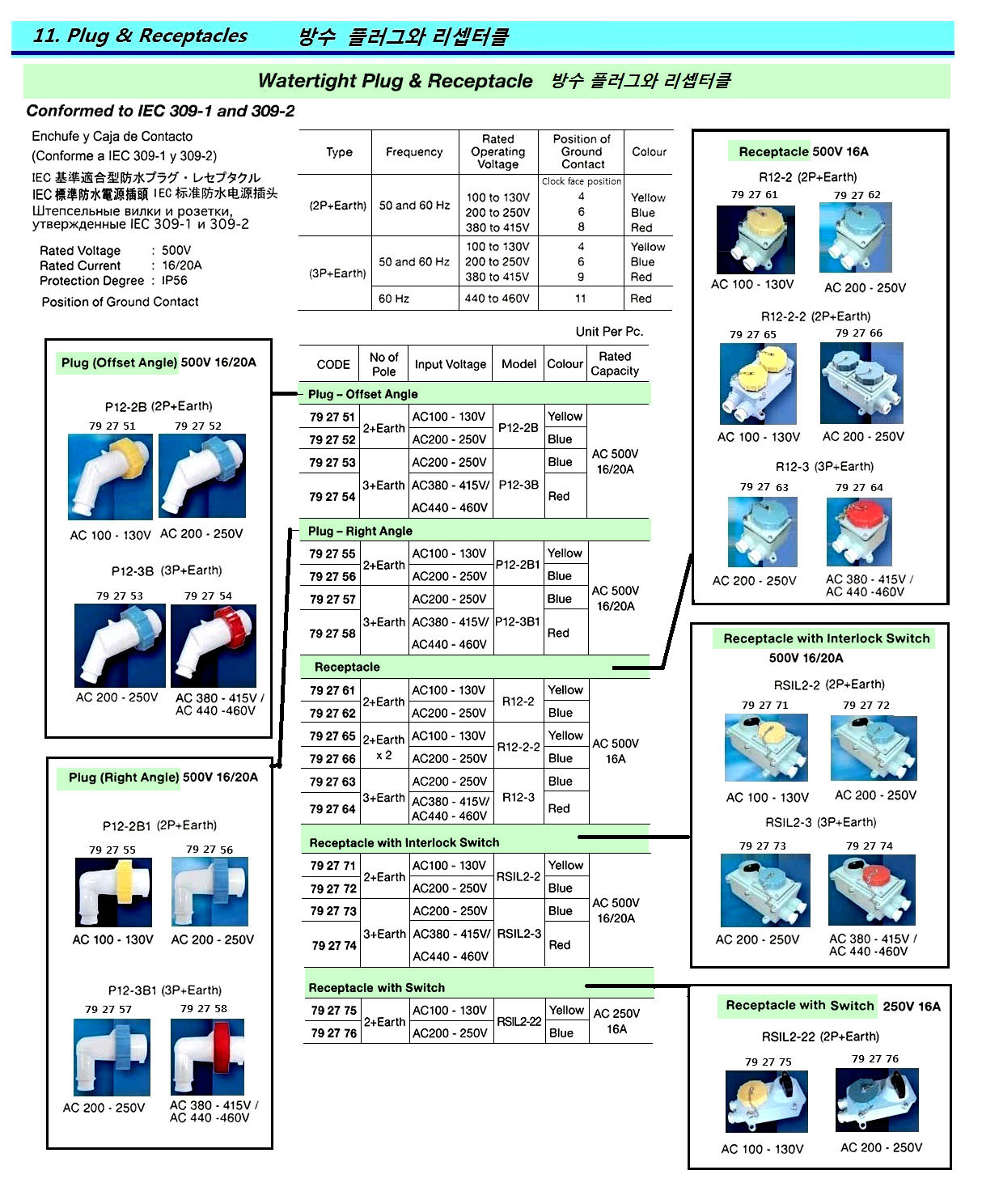

产品规格	Designed to meet IEC (International Electrotechnical Commission) standards and colour coding system. The configurations for plugs and receptacles are single-rated which assures proper mating of devices with the same voltage and amperage. So it is impossible to couple a plug and receptacle of different voltage and/or amperage ratings to avoid causing damage to the equipment or even personal injury. The receptacles with Interlock device eliminate the possibility of making or breaking the circuit under load or making a haphazard connection. Rated Voltage : 500V, Rated Current : 16/20A. Protection Degree : IP56 Receptacle with Interlock Switch
中文汉化	792774 带有 IEC 锁和 3P+E 的插座，适用于 AC380-415/440-460V 红色 RSI L2-3。这款设计符合国际电工委员会（IEC）标准和颜色编码系统。插头和插座的配置为单电压额定值，确保了具有相同电压和电流的设备能正确匹配，避免了因电压或电流不匹配而对设备造成损坏甚至人身伤害。带有联动装置的插座消除了在负载下接通或断开电路的可能性，以及随意连接的风险。额定电压为 500V，额定电流为 16/20A。防护等级为 IP56。联动开关插座
