652536 TEMP. CALIBRATOR APPROVED, AMETEK ATC-320 33 TO 320DEG

652536 TEMP. CALIBRATOR APPROVED, AMETEK ATC-320 33 TO 320DEG
规格参数 参数值
IMPA编码 652536
产品单位 SET

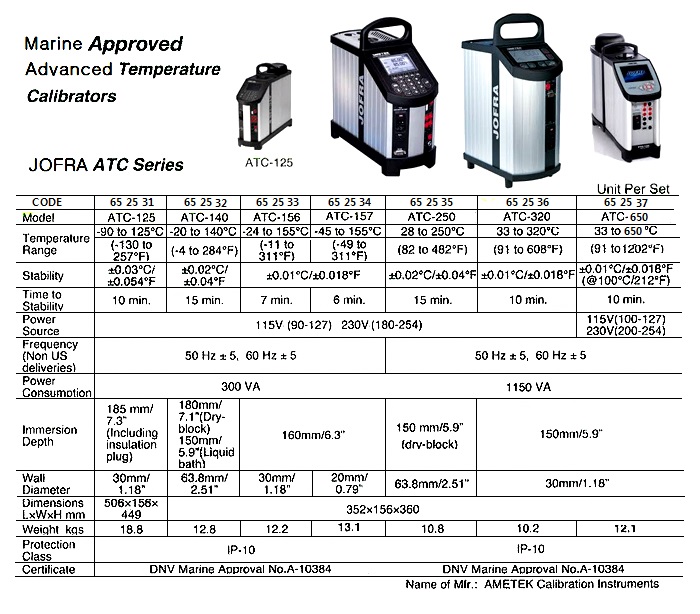

产品规格 The ATC series offers a wide temperature calibration range (-90 to 650oC) and improved stability (+ 0.01oC for most models) for marine calibration. It utilizes innovative dual-zone heating technology for precision calibration of sensors. Independent heating control allows the lower zone to ensure optimum heat dissipation throughout the entire calibration zone, while the upper zone compensates for heat loss from the sensor-under-test and the open top. This design also eliminates the need for insulation of the sensors-under-test and allows calibration of liquid-filled and other mechanical sensors. Major Features: 12-month accuracy to ±0.04oC / 0.07oF, Temperature range -90o to 650oC / -130o to 1202oF, Stability to ±0.01°C / 0.018°F, 14 different models, MVI stability circuitry, 100% automatic calibration, RS232 interface and JOFRACAL calibration software, Input for external reference sensor and sensor-under-test, Timesaving auto-stepping and temperature switch test functions, Interchangeable inserts including multi-hole designs, Active dual-zone
中文汉化 652536 温度校准器，AMETEK ATC-320，33 至 320° 该ATC系列提供了广泛的温度校准范围（-90 至 650°C），并提高了海洋校准时的稳定性（大多数型号+ 0.01°C）。它采用创新的双区加热技术，精确校准传感器。独立的加热控制允许下部区域在整个校准区域内确保最佳热量散发，而上部区域则补偿被测传感器和开口顶部的热量损失。此设计消除了对被测传感器的绝缘需求，可校准充满液体和其他机械传感器。主要特点包括： 12个月精度±0.04°C / 0.07°F，温度范围-90°C 至 650°C / -130°F 至 1202°F，稳定性±0.01°C / 0.018°F，14种不同型号，MVI稳定性电路，100%自动校准，RS232接口和JOFRACAL校准软件，外部参考传感器和被测传感器输入，节省时间的自动步进和温度切换测试功能，可互换插件包括多孔设计，活动双区加热。
