652509 CALIBRATOR TEMP SIKA TP17 650M, RANGE UPTO 650DEG.C 230VAC

652509 CALIBRATOR TEMP SIKA TP17 650M, RANGE UPTO 650DEG.C 230VAC
规格参数 参数值
IMPA编码 652509
产品单位 SET

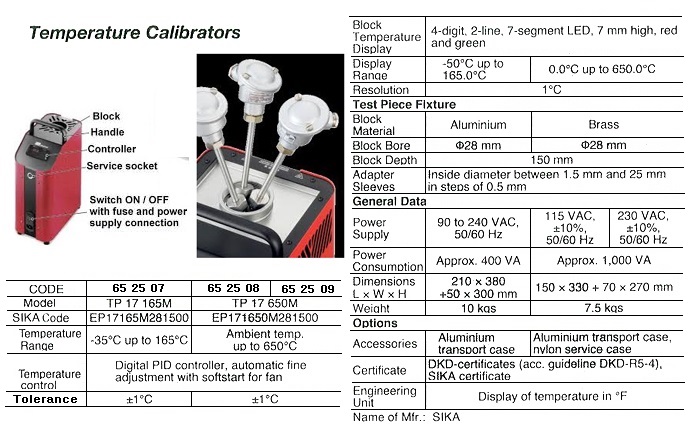

产品规格 Exact temperature measurement and monitoring are “musts” in applications crucial to operational safety of machinery and industrial installations. In 2002, this was applied to all ships by the Safety of Life at Sea (SOLAS), Chapter IX and the ISM (the International Safety Management) Code as mandatory regulation. Regular inspection of the temperature sensors used in these applications is essential for economic and technical safety reasons and is already prescribed as obligatory in many sectors. This calibrator contains an electrically controlled metal block with a bore for the insertion of the test piece. Adaptor sleeves are used for test pieces with smaller diameter. The block is mounted in a heat insulated housing. The complete electronic is located in the front of the calibrator. The required temperature is easily set on the digital controller. The current temperature will automatically be adjusted to the set value. The current temperature and set temperature are constantly shown on the 2-line, 4-digit, 7-segment LED display.
中文汉化 652509 校准器 TEMP SIKA TP17 650M, 范围高达650°C, 230VAC 在对机器和工业设施运行安全至关重要的应用中，精确的温度测量和监控是“必须”的。2002年，《海上人命安全》(SOLAS)第九章和《国际安全管理》(ISM)规则将其作为强制性规定应用于所有船舶。 出于经济和技术安全的考虑，这些应用中使用的温度传感器定期检查至关重要，并且在许多行业中已被规定为强制性的。这款校准器包含一个带孔的电动金属块，用于插入被测件。对于直径较小的被测件，可以使用适配套筒。 该金属块安装在一个隔热外壳中。完整的电子设备位于校准器前端。只需简单设置数字控制器上的所需温度，当前温度将自动调整至设定值。当前温度和设定温度持续显示在双行、四位、七段LED显示屏上。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
