651986 THERMOMETER SIKA 174B 110X30MM, PT1/2 0-200DEG.C 30MM-STEM

651986 THERMOMETER SIKA 174B 110X30MM, PT1/2 0-200DEG.C 30MM-STEM
规格参数 参数值
IMPA编码 651986
产品单位 PCE

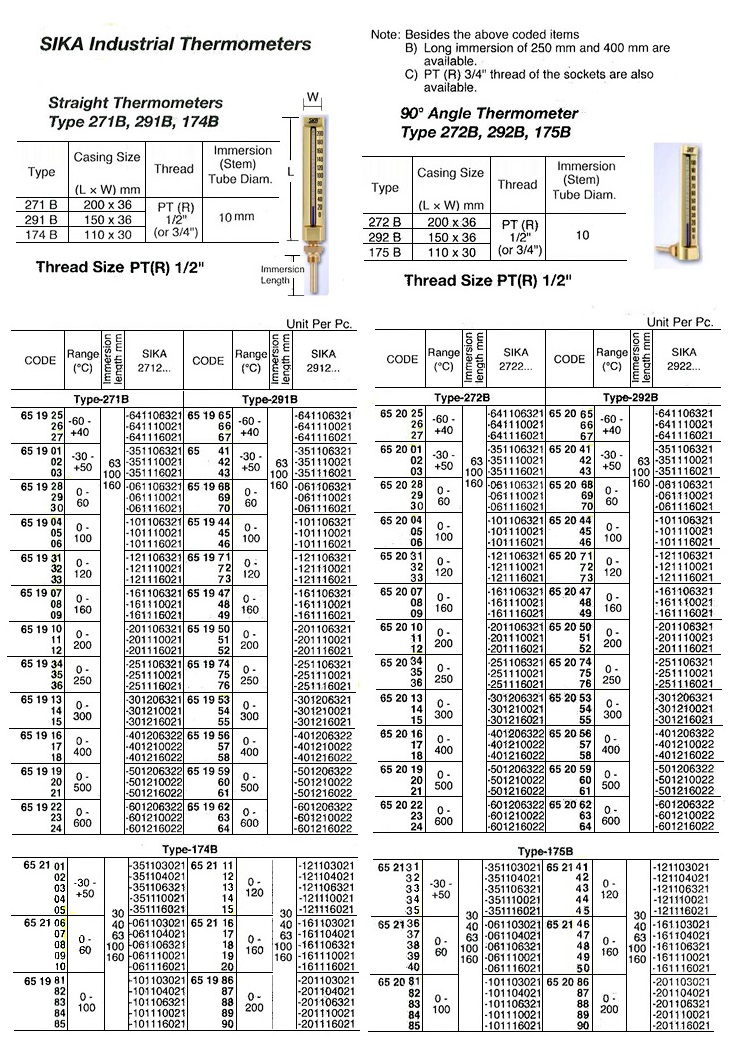

产品规格 A wide variety of Sika thermometers are available. The most widely carried, standard types are listed below with their respective specifications. The thermometer casings are finished in anodized gold colour. Standard models have the graduated readings listed on the right hand side and the surface is coated for protection from outside elements. Straight Thermometers Type 271B, 291B, 174B: Threaded sockets with a solid hexagonal nut. Adjustable to any desired viewing position and locked by brass nut, spanner size 22 mm. Thermometers with a measuring range from -60oC to +250oC have a blue fluid indicator and thermometers with ranges above 250oC work with mercury indicators. Immersion Tubes, pockets Standard: brass for temperatures up to 250oC, for temperatures above 250oC steel. When ordering, specify thread size as well as type, range and immersion stem length, or SIKA's catalogue number. As to thread sizes of the socket the most common PT (R) 1/2" is applied to the following coded items.
中文汉化 651986 Sika 温度计 174B，110x30mm，PT1/2，0-200°C，30mm-茎 Sika生产多种温度计。以下列出了最常见和标准型号及其规格。温度计壳体采用阳极氧化金色处理。 标准型号的温度计在其右侧标有刻度，表面涂覆以防止外部因素影响。直型温度计，如271B、291B和174B：带有实心六角螺母的螺纹插座。可调整至任何所需的观察位置，并由22mm直径的黄铜螺帽锁定。 测量范围从-60°C到+250°C的温度计使用蓝色液体指示器；而测量范围超过250°C的温度计采用水银指示器。标准嵌入管或套管：温度不超过250°C时为黄铜材质，超过250°C时为钢材质。下订单时，请同时注明螺纹尺寸、类型、范围和嵌入管长度，或提供Sika的产品目录编号。 对于插座的螺纹尺寸，最常见的PT（R）1/2
