811287 JOINT SHEET EXPANDED GRAPHITE, NOVAPHIT SSTC 1.5X1000X1000MM

811287 JOINT SHEET EXPANDED GRAPHITE, NOVAPHIT SSTC 1.5X1000X1000MM
规格参数 参数值
IMPA编码 811287
产品单位 ST

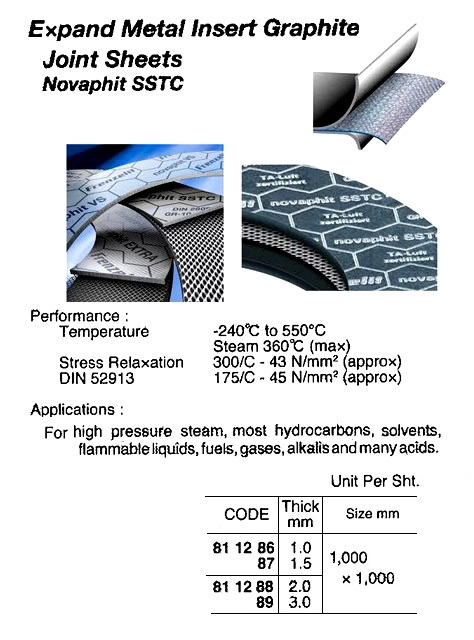

产品规格 The highest quality gasket material based on pure exfoliated graphite with a stainless steel mesh reinforcement and no binders or adhesives. It is easier to cut than the traditional tang metal reinforced graphite and it is fire-safe approved by Lloyds. It exhibits virtually no creep in service. Available in sheet form or as a Cut Gasket to suit standard or non-standard flanges. Performance: Temperature -240oC to 550oC, Steam 360oC (max), Stress Relaxation 300/C - 43 N/mm2 (approx), DIN 52913 175/C - 45 N/mm2 (approx). Applications: For sealing high pressure steam, most hydrocarbons, solvents, flammable liquids, fuels, gases, alkalis and many acids.
中文汉化 811287 扩展石墨板，NOVAPHIT SSTC 1.5x1000x1000毫米 这是最优质的基于纯剥离石墨的垫片材料，具有不锈钢网格增强，无粘合剂或胶水。相比传统的金属嵌条强化石墨，它更易于切割，并且经过劳氏(Lloyds)消防安全认证。在服务中几乎无蠕变性。 形式：可提供平板或定制切割垫片，以适应标准或非标准法兰。 性能： - 温度范围：-240°C至550°C - 蒸汽耐受温度：360°C（最大） - 应力松弛：300°C - 约43 N/mm²（根据DIN 52913） - 175°C - 约45 N/mm²（根据DIN 52913） 应用： 适用于密封高压蒸汽、大多数烃类、溶剂、易燃液体、燃料、气体、碱和多种酸。
