811288 JOINT SHEET EXPANDED GRAPHITE, NOVAPHIT SSTC 2.0X1000X1000MM

811288 JOINT SHEET EXPANDED GRAPHITE, NOVAPHIT SSTC 2.0X1000X1000MM
规格参数 参数值
IMPA编码 811288
产品单位 ST

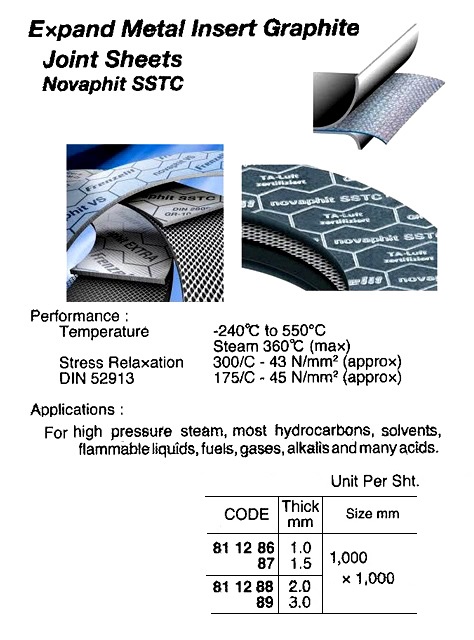

产品规格 The highest quality gasket material based on pure exfoliated graphite with a stainless steel mesh reinforcement and no binders or adhesives. It is easier to cut than the traditional tang metal reinforced graphite and it is fire-safe approved by Lloyds. It exhibits virtually no creep in service. Available in sheet form or as a Cut Gasket to suit standard or non-standard flanges. Performance: Temperature -240oC to 550oC, Steam 360oC (max), Stress Relaxation 300/C - 43 N/mm2 (approx), DIN 52913 175/C - 45 N/mm2 (approx). Applications: For sealing high pressure steam, most hydrocarbons, solvents, flammable liquids, fuels, gases, alkalis and many acids.
中文汉化 811288 扩展石墨板，NOVAPHIT SSTC 2.0x1000x1000毫米。基于纯剥离石墨的最高质量垫片材料，配备不锈钢网加强，无粘合剂或胶水。相较于传统金属条强化的石墨，它更易于切割，并通过劳氏消防安全认证。在使用中几乎无蠕变现象。提供平板形式或切割垫片，以适应标准或非标准法兰。 性能：-240°C至550°C温度范围，蒸汽360°C（最大），应力松弛300°C - 约43 N/mm²（DIN 52913），175°C - 约45 N/mm²（大约）。 应用：适用于密封高压蒸汽、大多数烃类、溶剂、易燃液体、燃料、气体、碱和多种酸。
