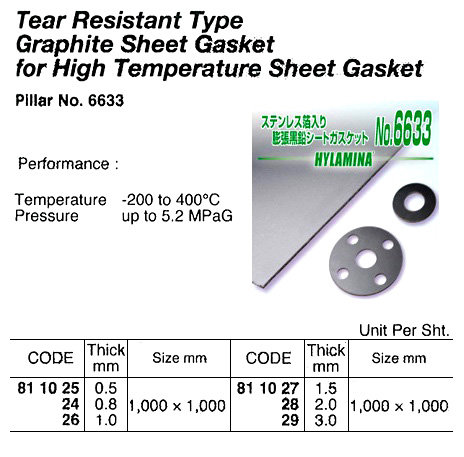

811025 JOINT SHEET GRAPHITE HIGH TEMP, PILLAR NO.6633 0.5X1000X1000MM

规格参数	参数值
IMPA编码	811025
产品单位	ST
产品规格	Pillar No. 6633 - Structure: An expanded graphite sheet gasket reinforced with stainless-steel foil to protect against tearing and improve ease of handling. Features: 1. Extremely thermally resistant. 2. Tear resistant. 3. Easily cut with a knife or scissors. 4. Highly chemically resistant. Applications: Suitable for use with pipe flanges and other types of applications that require gaskets with thermal resistance and anti-chemical properties. Performance: Temperature -200 to 400oC. Pressure up to 5.2 MPaG
中文汉化	811025 高温石墨接合板，编号6633，尺寸为0.5x1000x1000毫米。编号6633结构：采用不锈钢箔增强的膨胀石墨垫片，以防止撕裂并提高操作便捷性。特点： 1. 非常耐高温。 2. 抗撕裂性强。 3. 可轻易用刀或剪刀裁剪。 4. 高化学稳定性。应用领域：适用于管法兰和其他需要耐热和抗化学性能密封垫片的应用场合。性能参数：工作温度范围：-200至400摄氏度。最大工作压力：5.2兆帕（G）的表压。
