811048 JOINT SHT GASKET PILLAR #5611, NON-ASBESTOS 2.0X1200X3810MM

规格参数	参数值
IMPA编码	811048
产品单位	ST

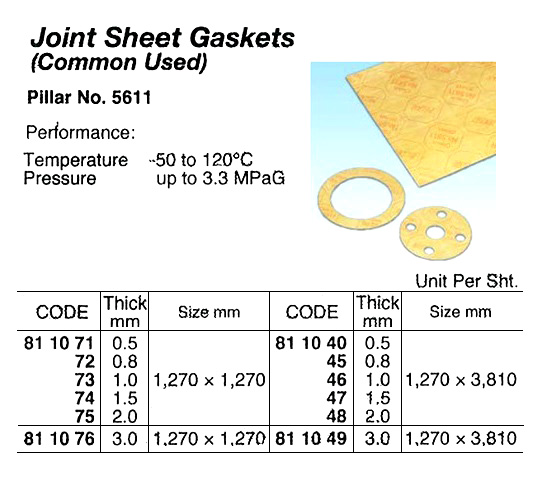

产品规格	Pillar No. 5611 - Structure: A joint sheet gasket made of inorganic fiber and aramid fiber bound with a rubber binder. Features: 1. High mechanical strength. 2. Superior fit with flange surfaces that ensures high sealing performance. 3. Great workability. Applications: Gasket for pipe flanges, maintenance hatches, and valve bonnets. Especially suitable for use with pipes that carry room-temperature water or oil. Performance: Temperature -50 to 120oC, Pressure up to 3.3 MPaG
中文汉化	811048 五号支柱接头垫片，非石棉材质，尺寸为2.0x1200x3810毫米。垫片编号：5611 - 结构：使用无机纤维和芳纶纤维制成，并以橡胶粘合剂绑定的接头板垫片。特性： 1. 高机械强度。 2. 与法兰表面的良好配合，确保了高密封性能。 3. 易于加工。用途：适用于管法兰、维护开口和阀门盖垫。特别适合用于输送常温水或油的管道。性能参数：温度范围：-50至120摄氏度，压力上限：3.3兆帕（G）表压。
