811125 JOINT SHEET NON-ASBESTOS, PILLAR NO.5650 0.8X1500X1500MM

规格参数	参数值
IMPA编码	811125
产品单位	ST

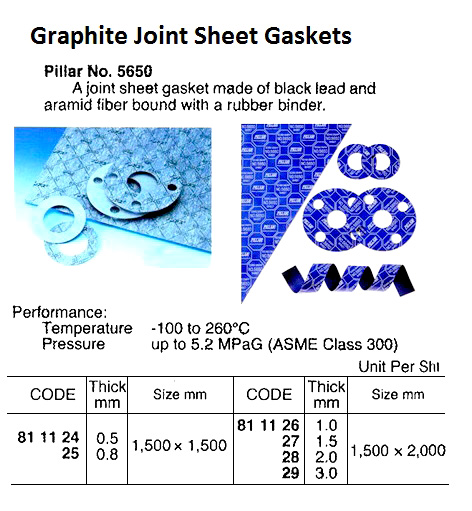

产品规格	Pillar No. 5650. A joint sheet gasket made of graphite black lead and aramid fiber bound with a rubber binder. Feature: 1. Highly thermally resistant. 2. High mechanical strength. 3. Non-adhesive to flange surfaces. 4. Great workability. Applications: Gaskets for pipe flanges, maintenance hatches, and valve bonnets. Especially suitable for use with pipes that carry saturated vapors. Performance: Temperature -100 to 260oC, Pressure up to 5.2 MPaG (ASME Class 300)
中文汉化	811125 非石棉板，支柱号5650，尺寸为0.8x1500x1500毫米。这款支柱号为5650的接头片垫片是由石墨黑铅和芳香族纤维与橡胶粘合剂结合制成。特性如下： 1. 具有高度的热稳定性。 2. 机械强度高。 3. 不会粘附到法兰表面。 4. 易于加工。用途：适用于管法兰、维护盖板和阀门阀帽的垫片。特别适合用于输送饱和蒸汽的管道。性能参数如下：温度范围：-100°C至260°C，压力上限：5.2 MPaG（ASME 300级）。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
