815623 SHEET NONASBESTOS FIBRE VALQUA, GENERAL 6509 3.0X1270X1270MM

规格参数	参数值
IMPA编码	815623
产品单位	ST

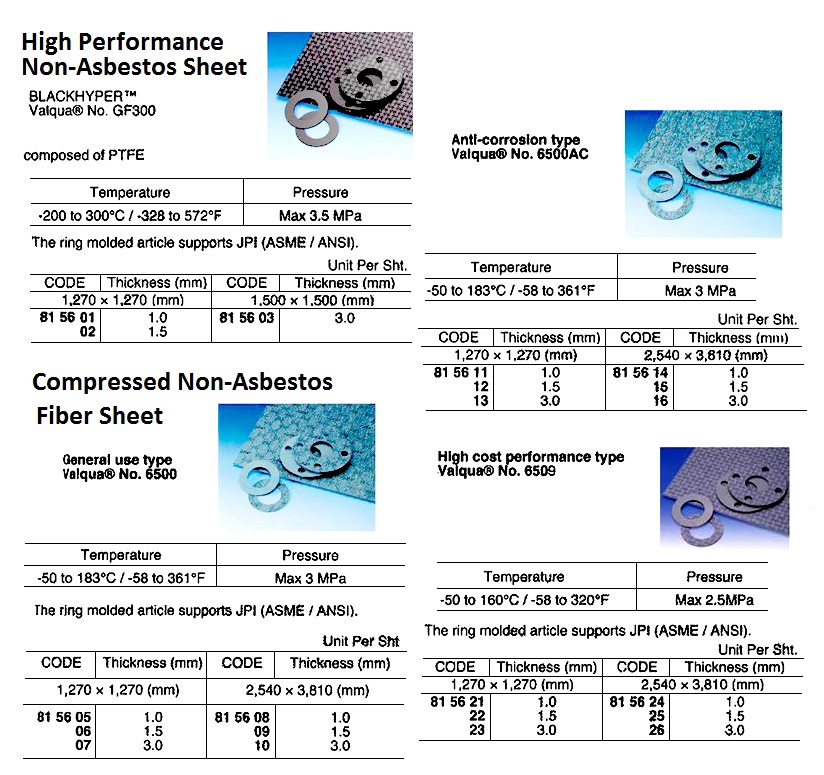

产品规格	Compressed Non-Asbestos Fiber Sheets are rolled and vulcanized sheet-type gasket materials, in which special rubber binders and a small amount of filler material are mixed with organic and inorganic fibers. High cost performance type - Valqua® No. 6509. This gasket was developed for low-pressure application. Features: Superior cost performance, Easy to handle and good workability. Temperature: -50 to 160oC / -58 to 320oF, Pressure: Max 2.5MPa. Suitable fluids: General fluids (water, steam, oil, etc.), liquefied gas Applications: Pipe flange, valve bonnets and covers of other equipment. Color type: Blue, Print color: Black The ring molded article supports JPI (ASME / ANSI).
中文汉化	815623 非石棉纤维板,VALQUA,通用型 6509, 3.0x1270x1270毫米压缩非石棉纤维板是卷绕和硫化的板式垫片材料，其中特殊橡胶粘合剂与有机和无机纤维以及少量填充物混合。这是一种高性价比类型 - Valqua® No. 6509。这种垫片适用于低压应用。特性：高性价比，易于处理且工艺性能良好。温度范围： -50至160°C / -58至320°F，压力：最大2.5MPa。适用流体：一般流体（水、蒸汽、油等），液化气体应用：管法兰，阀门座圈和其他设备的盖子。颜色类型：蓝色，印刷颜色：黑色环形模制件符合JPI（ASME/ANSI）标准。
